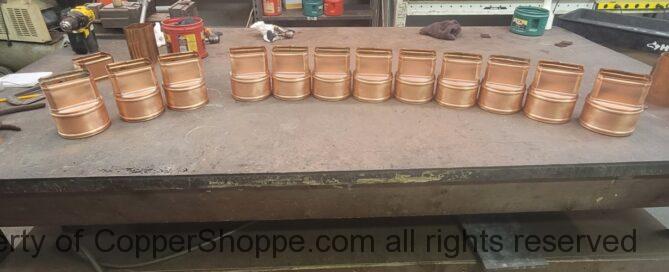

Rectangular Copper Downspout to 4″ Round Drain Transitions
Rectangular Copper Downspout to 4″ Round Drain Transitions. Notice in the last picture the 4 corner diverter plates…
Rectangular Copper Downspout to 4″ Round Drain Transitions. Notice in the last picture the 4 corner diverter plates…
Rectangular Copper Downspout to Round Drain Transitions
more transitions….
These were to transition a standard 4″ by 3″ Downspout to a 4″ Green Pipe Drain that was cut flush with the stone patio. We incorporated a PVC interior collar (a union cut in half) so that the Beauty Collar had a backing to protect it in case of a bump. Not bullet proof but would help to minimize the dent…
Rectangular Copper Downspout to Round Drain Transitions
These were a little tricky. Transition a 4.00″ by 3.00″ Downspout into a 4″ drain but also have a collar on a 6 degree angle for the sill it is going through…
We also put gussets in the corners to help route the water into the drain…First of 12 or so for the project…plus two that will go into the wall face.
Over the years we thought we did just about any AutoClear imaginable….well that’s going out the window!

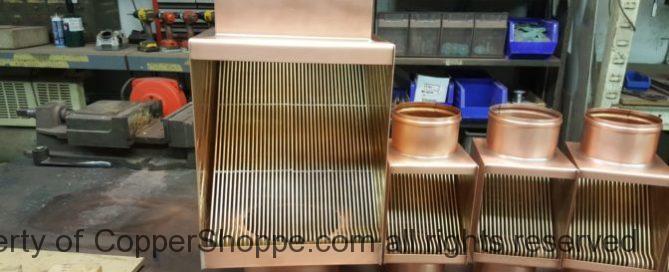

Just finished up this project for 9 AutoClear Brasstonian Series.
You will notice the one that is 10-3/8″ wide by 10″ deep by 12-1/2″ tall. For a custom 8″ by 8″ Downspout going into a 6-3/4″ Drain.
We also supplied a custom extension for the Bottom just incase there is a water outflow issue…never made one this big before and just trying to cover the bases.
Click Here to Go to our AutoClears Page for more Information and Pricing
Nemours 2 Copper Leader Heads Collector Boxes with Scupper Trough
Last 3 for the project….
Copper Base Molding for Column
Should be simple when you look at it on the outside….but a lot going on where you don’t see….These are a bit more difficult to do than they appear if you want to do them correctly.
